FTTH 1GE Xpon Gpon Epon LAN IP For Fiber Optic Network

Name: FTTH 1GE Xpon Gpon Epon LAN IP For Fiber Optic Network
Brand: OEM ODM
Price: 12 USD

Quality FTTH 1GE Xpon Gpon Epon LAN IP For Fiber Optic Network wholesale

Brand Name : OEM ODM

Model Number : XPON-5033X

Certification : FCC, RoHS, ce

Place of Origin : Guangdong, China

MOQ : 10PCS

Price : US$12-US$13.00

Payment Terms : Western Union, T/T.Paypal

Supply Ability : 4000pcs per week

Packaging Details : 1 pcs in a box , requirements are available

PON Interface : 1 GPON BOB (Class B+/Class C+)

Optical Interface : SC/UPC Connector

LAN Interface : 1x 10/100/1000Mbps auto adaptive Ethernet interface

Application : FTTH,FTTO, FTTB

Power Supply : DC 12V/0.5A

Power Consumption : <3W

Wavelength : TX: 1310nm, RX: 1490nm

No. of Fiber : 1

Contact Now

1GE Xpon Gpon Onu For Fiber Optic Network FTTH USE Optical Interface SC / UPC Connector

Description:

designed as HGU (Home Gateway Unit) in deferent FTTH solutions,The carrier-class FTTH application provides data service access.
based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0 and GPON Standard of ITU-TG.984.X

Functional Feature:

Support EPON/GPON mode and switch mode automatically

Support ONU auto-discovery/Link detection/remote upgrade of software

Support Route PPPoE/DHCP/Static IP and Bridge mode

Support IPv4/IPv6 dual mode

Support Firewall function and IGMP multicast feature

Support LAN IP and DHCP Server configuration

Support Port Forwarding and Loop-Detect

Support TR069 Remote Configuration and maintenance

Specialized design for system breakdown prevention to maintain stable system

Specification:

Technical item	Details
PON Interface	1 GPON BOB (Bosa on Board)
	Receiving sensitivity: ≤-28dBm
	Transmitting optical power: +1~+4dBm
	Transmission distance: 20KM
Wavelength	TX: 1310nm, RX: 1490nm
Optical Interface	SC/UPC Connector
Chip Spec	RTL9601D ,CPU 300MHz,DDR2 32MB
Flash	SPI Nor Flash 16MB
LAN Interface	1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector
LED	4 LED, For Status of PWR,LOS,PON,LINK/ACT
Push-Button	2,For Function of Power on/off,Reset
Operating Condition	Temperature: 0℃~+50℃
Operating Condition	Humidity: 10%～90%(non-condensing)
Storing Condition	Temperature: -30℃~+60℃
Storing Condition	Humidity: 10%~90%(non-condensing)
Power Supply	DC 12V/0.5A
Power Consumption	<3W
Dimension	120mmx78mmx30mm(L×W×H)
Net Weight	0.13Kg

Panel lights Introduction

Pilot	Status	Description
PWR	On	The device is powered up.
PWR	Off	The device is powered down.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LOS	Blink	The device doses not receive optical signals.
LOS	Off	The device has received optical signal.
LINK/ACT	On	Port is connected properly (LINK).
	Blink	Port is sending or/and receiving data (ACT).
	Off	Port connection exception or not connected.

FTTH 1GE Xpon Gpon Epon LAN IP For Fiber Optic Network

Application

Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
Typical Business:INTERNET,IPTV etc

Product Tags:

FTTH Xpon Gpon Epon

1GE Xpon Gpon Epon

LAN IP Onu Network Device

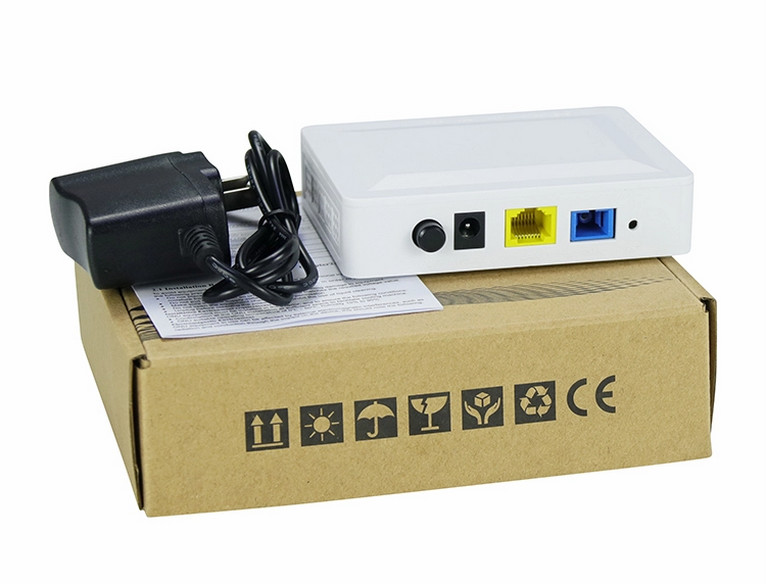

FTTH 1GE Xpon Gpon Epon LAN IP For Fiber Optic Network Images
